Legend for panel scout

EmmanuelleKris · October 19, 2020, 1:03pm

Hi,

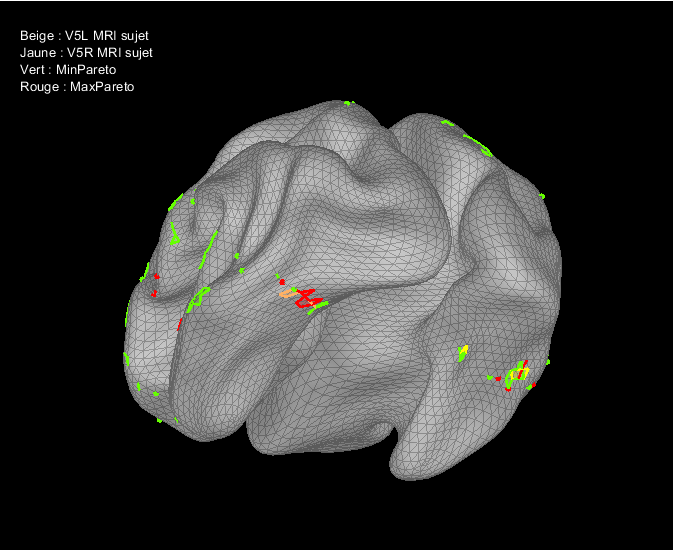

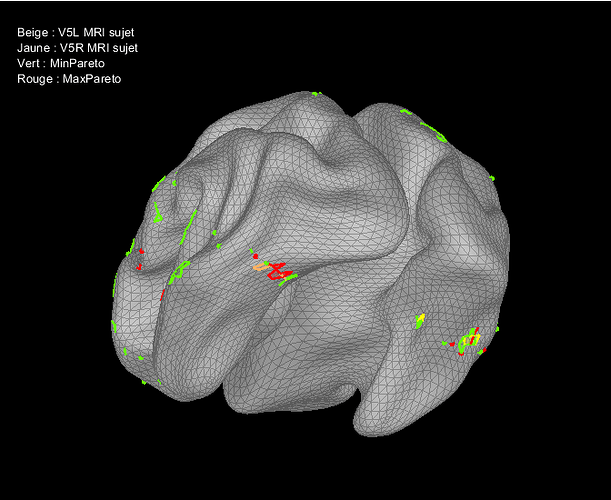

How could I display the legend for panel scout, by scripting, please?

Francois · October 21, 2020, 10:22am

You want to add text on top of a 3D figure using a Matlab script, is this correct?

You can find some inspiration in the way we display text in some topo or 3d figures:

brainstorm-tools/brainstorm3/blob/master/toolbox/gui/figure_topo.m#L1049


    'XGrid',         'off', ...

    'XMinorGrid',    'off', ...

    'XTick',         [], ...

    'YTick',         [], ...

    'TickLength',    [0,0], ...

    'XTickLabel',    [], ...

    'Box',           'off', ...

    'Interruptible', 'off', ...

    'BusyAction',    'queue');

% Create label

PlotHandles.hLabelLegend = text(...

    10 / figPos(3), .5, '', ...

    'FontUnits',   'points', ...

    'FontWeight',  'bold', ...

    'FontSize',    8 .* Scaling, ...

    'Color',       textColor, ...

    'Interpreter', 'none', ...

    'Tag',         'LabelTimestamp', ...

    'Parent',      PlotHandles.hAxesLegend);

% Reset current axes

set(hFig, 'CurrentAxes', hAxes);

github.com

brainstorm-tools/brainstorm3/blob/master/toolbox/gui/view_spheres.m#L101


set(hFig, 'Name', ['Check spheres: ' HeadModelFile]);

% Get axes handles

hAxes = findobj(hFig, '-depth', 1, 'Tag', 'Axes3D');





%% ===== DISPLAY SPHERES+SENSORS =====

% Hack keyboard callback

KeyPressFcn_bak = get(hFig, 'KeyPressFcn');

set(hFig, 'KeyPressFcn', @KeyPress_Callback);

% Create legend (Sphere)

hLabel = uicontrol('Style',               'text', ...

                   'String',              '...', ...

                   'Units',               'Pixels', ...

                   'Position',            [6 0 400 18], ...

                   'HorizontalAlignment', 'left', ...

                   'FontUnits',           'points', ...

                   'FontSize',            bst_get('FigFont'), ...

                   'ForegroundColor',     [.3 1 .3], ...

                   'BackgroundColor',     [0 0 0], ...

                   'Parent',              hFig);

% Plot sensors
