Problem with Smoothing and Scouts Only on Some Subjects

Hello,

For some subjects (6 in total), I no longer have any available scouts, and I am experiencing an issue with the "smooth" functionality: the smoothing scale changes, but there is no visible modification of the brain (it does not “inflate” or “deflate”). I have installed the new version of Brainstorm (May 1, 2025), but I already encountered this issue with the previous version.

For other subjects, these parameters work correctly, even though the settings are exactly the same. I do not understand why this issue only affects some subjects. It’s also worth noting that I don’t have this problem if I switch to a different protocol or use an older protocol.

Can you help me identify the source of this problem? Do you think I should re-import these subjects and redo the whole process? What would you advise me to do?

Thank you in advance for your help.

Verify that the default surface (in green) is properly selected for those 6 subjects.
You can double-click the surface to make it the default, or right-click on it then Set as default cortex

Please share relevant screenshots of what you are experiencing so we can have a better idea on what is going on in your side.

Hello,

Thank you very much for your response. Unfortunately, I still haven’t been able to resolve this issue.

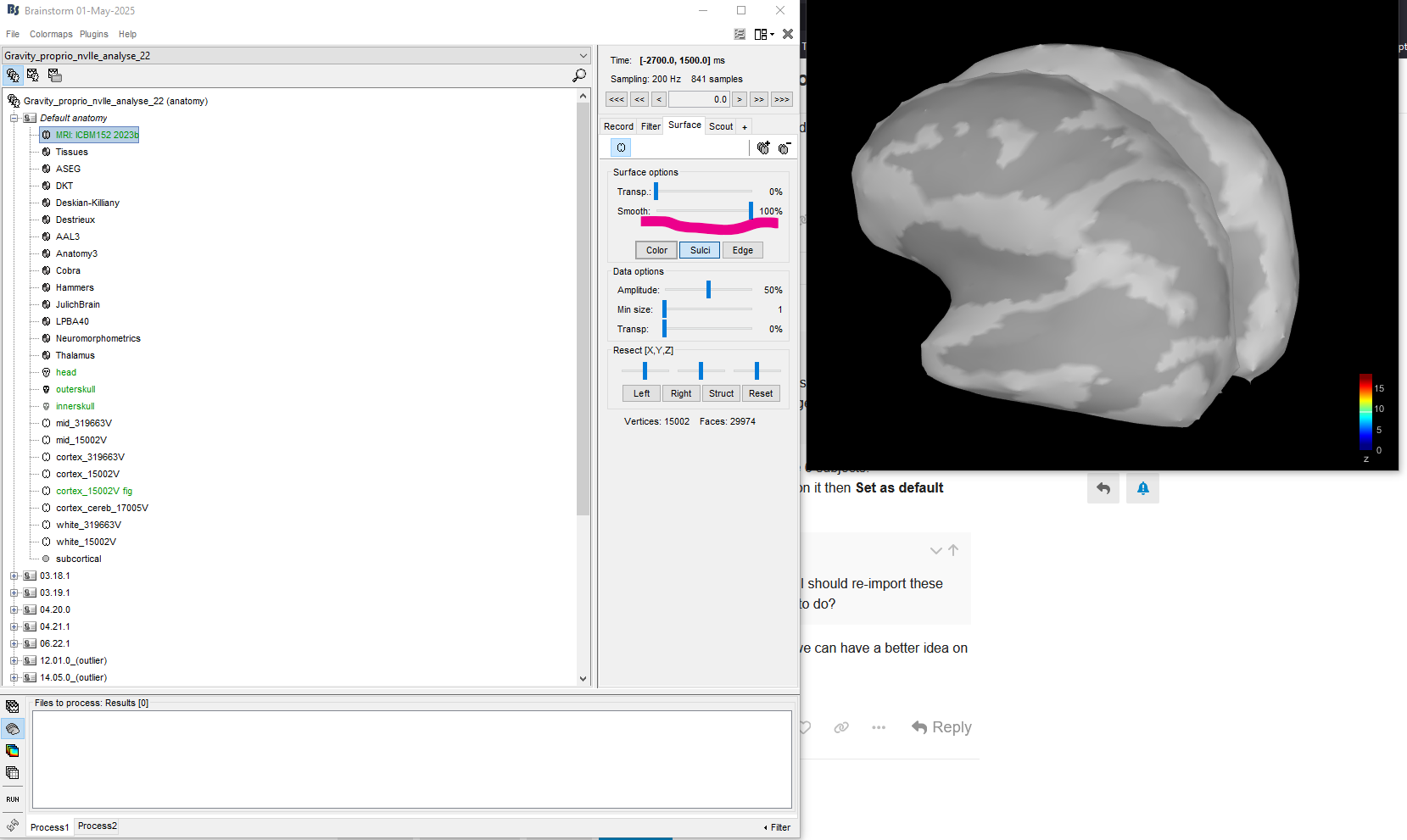

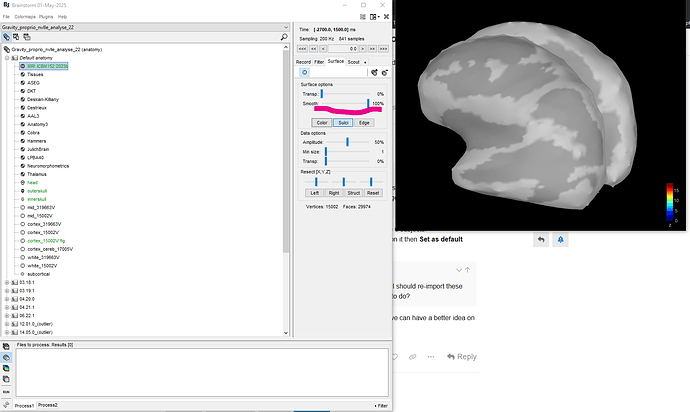

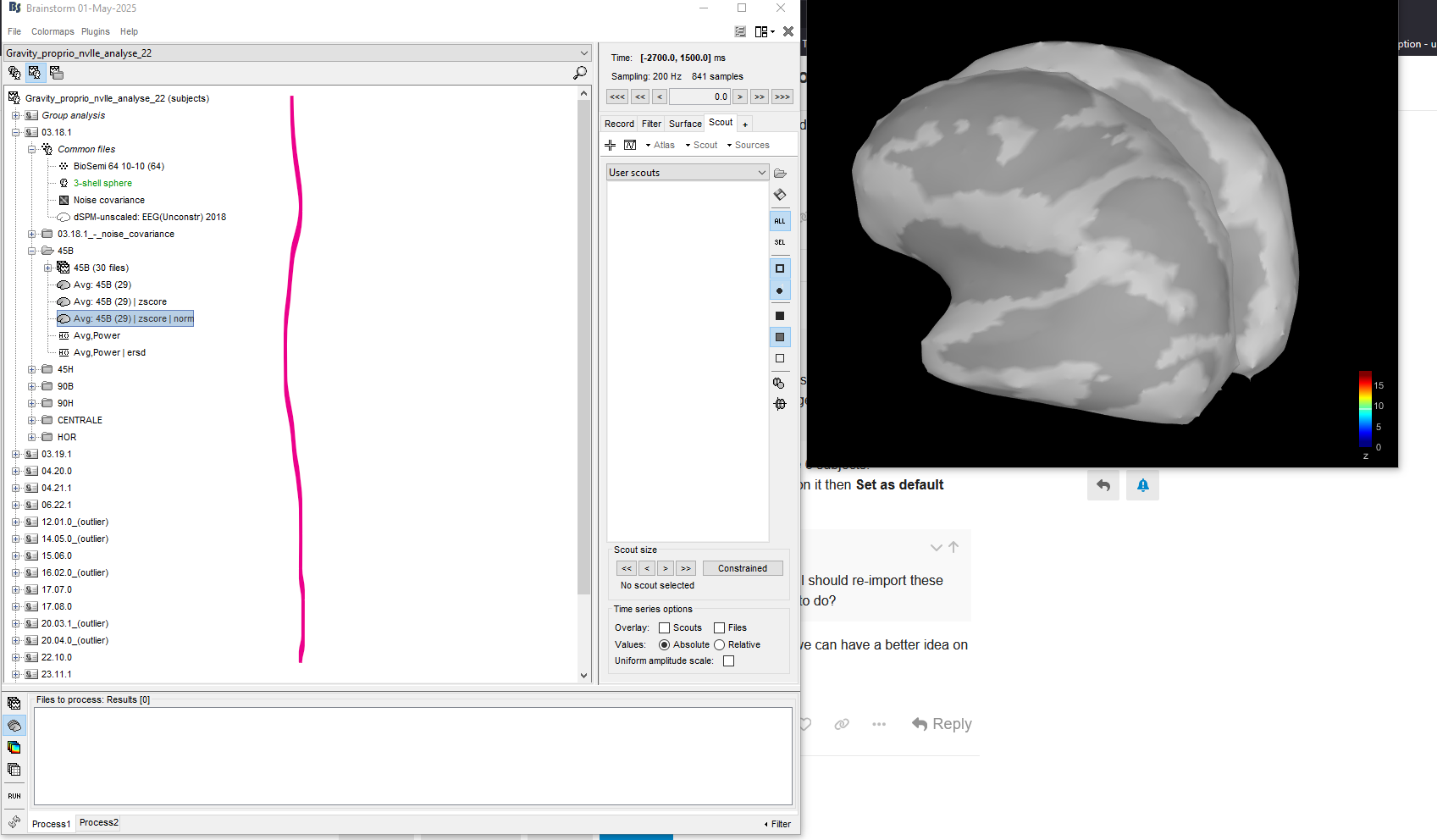

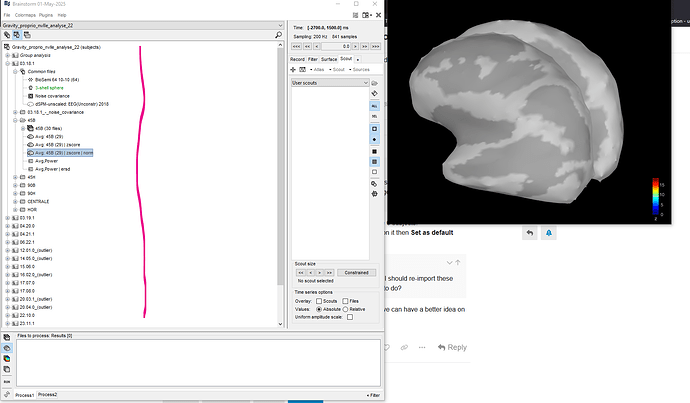

I have attached several screenshots: one with the low scale, another with the high scale, one showing the pipeline I am using, and another to show that there are no scouts left for these subjects.
Please let me know if you need any further information.
Thank you in advance,

Aurélien

I found the solution, you were right: the selected surface was not the correct one. I was able to notice this by right-clicking on my sources and selecting "View file content." I saw that for these 6 subjects, the associated file was “@default_subject/tess_cortex_pial_low_fig.mat”, whereas for the correct subjects, it was “@default_subject/tess_cortex_pial_low.mat”.
Thank you for your help. Now that the surface is properly updated, I will delete the sources for these subjects and then reprocess my data.

Smooth 100%

It may be my eyes, but it seems the second image is less smooth.
E.g, in the lateral sulcus looks more closed in the 2nd image.

Verify that surface file that was used to compute the sources:

  1. Right-click on the source file, File > View file contents, then look for the field SurfaceFile
  2. In the anatomy view, hover on the surface files and find the same surface file as in step 1
  3. Double-click that surface

Was the found surface manually modified?
Where does this file come from?
Check its history (if any). Right-click > File > View file history

Great!
I just added more detailed steps to figure that out
