Report filter roll off characteristics

1

Hi brainstorm experts,

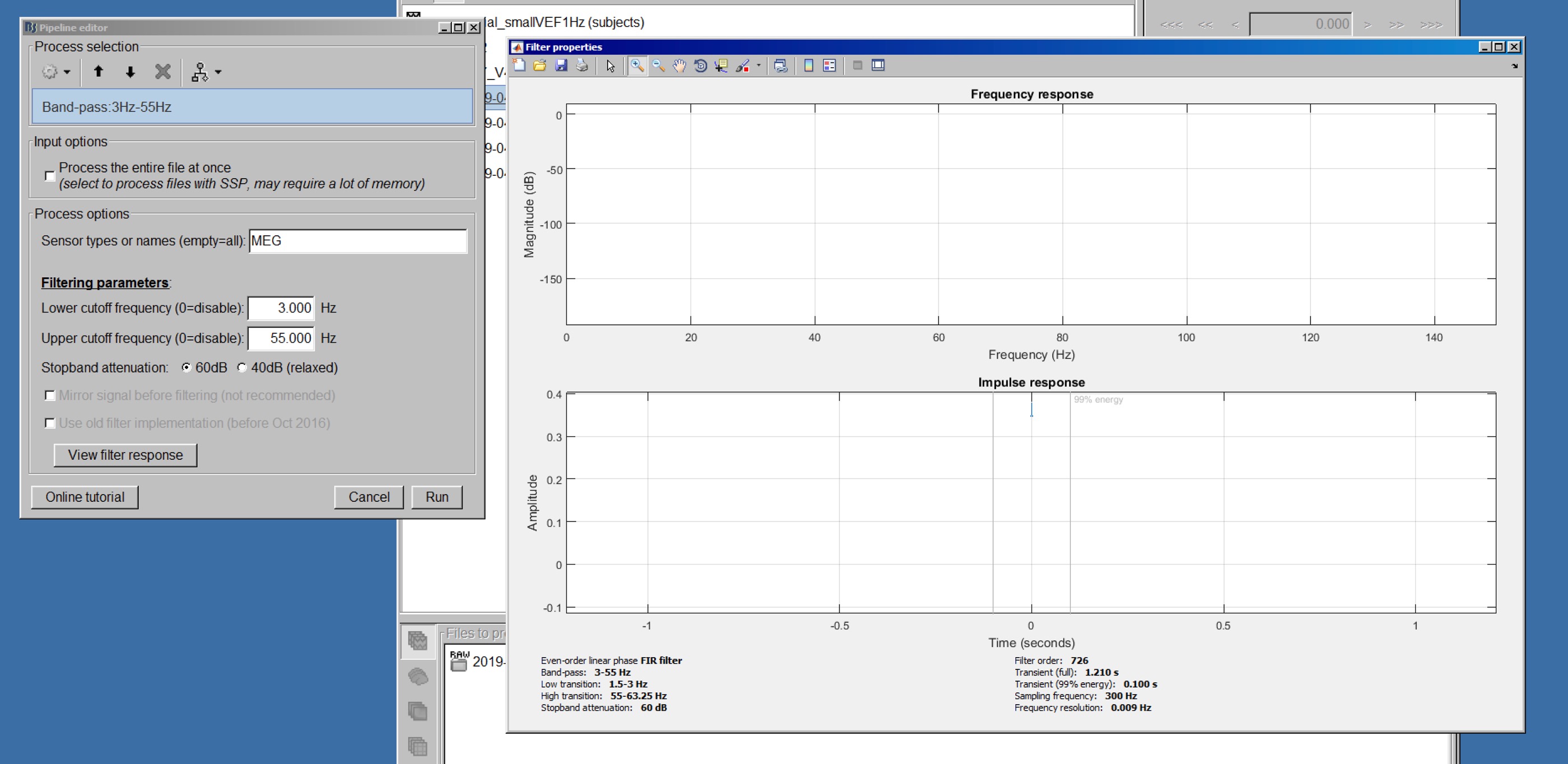

I want to report the dB/octave slope of the bandpass filter I used (bandpass 3 - 55Hz). When I click on view filter response (see the screenshot below), I saw the numbers for low transition and high transition, but I don't see anything plotted in the frequency response. So where can I find out the Roll off characteristics?(e.g., on the low end, what are the frequencies where 100% activity is removed and 100% is passed? and likewise for the high end?)

Thanks!
Yuhan

image2800×1364 514 KB
image2800×1364 312 KB

2

What version of Matlab are you using?

@hossein27en Any suggestion?

3

I use Matlab R2015a.

4

Please start by updating Brainstorm, what you show here is not the current version of the filter process, you have some options missing.
