SEEG Visualisation

1

Good afternoon,

I want to visualise SEEG on MRI. Unfortunately, I have 2 MRI for each subjects, one is the native structural T1 and one is segmentation only. I can display both MRI (overlay), or SEEG with each of the MRI space. Is it possible to display SEEG contacts with both MRIs (overlay) at the same time?

Thank you

2

Hi @jbun0007

I'm not sure that you can do that with the current version.

It may be possible with a customized script.

However, you can display each MRI with the electrodes side by side and then hit the "=" to get the same view on bot figures.

4

A quick thought: Have you try to import the segmentation MRI as an Volume atlas?
In that case, the overlap will work without troubles.

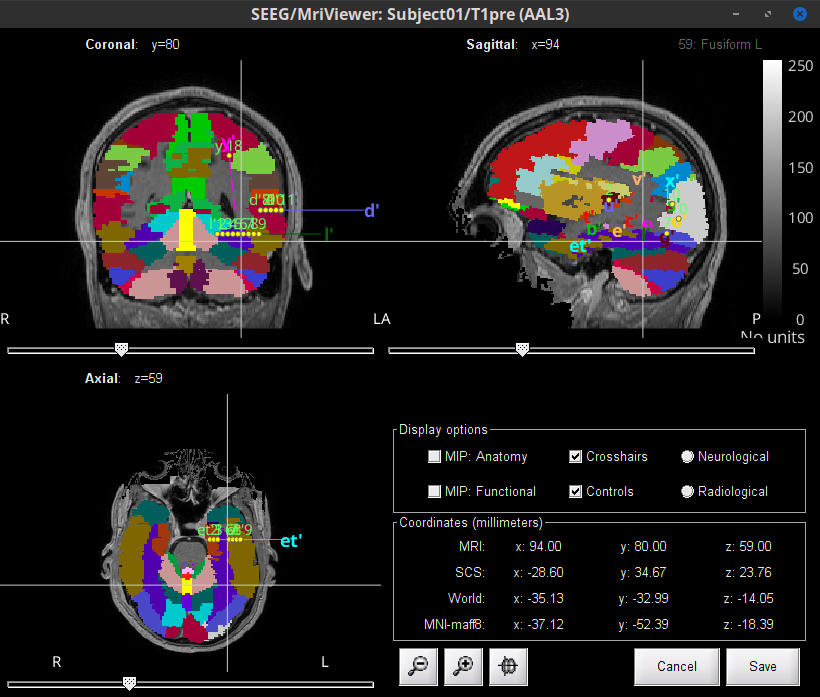

  1. Right-click on the Channel file > Display sensors > (MRI Viewer: AnatomyMRI)
  2. On the MRI Viewer, right-click > Anatomical atlas > Show atlas

image820×697 109 KB

Please let me know if this what you need

5

Hi Raymundo,

Thanks for the soultion

I've tried importing the segmented image as volume atlas (in subject's space). But the result is errors:

Line 1858: zeros
Size inputs must be integers:

Call stack:

panel_surface.m>UpdateSurfaceData at 1858
panel_surface.m>SetSurfaceData at 1525
panel_surface.m at 40
view_mri.m at 222
import_mri.m at 426
bst_call.m at 28
tree_callbacks.m>@(h,ev)bst_call(@import_mri.iSubject,,,1) at 565

Do you have any idea on how to solve this?

Thanks

Jacob

6

Hi,

I can import the MRi file as atlas. But now when I right clicked MRIviewer it did not display the atlas (just none) even though I have clicked it multiple times.

Thanks,

Kind regards

Jacob

7

Can you share an image on how the imported Atlas looks in the database? It must display this icon:
iconMriAtlas

8

Yes

I import the image (volume atlas from subject space) -> apply transfomration (yes) -> compute SM parameter (yes) -> reslice (yes).

It worked to import this but I could not display it
