Tutorial 1: Create a new protocol

Authors: Francois Tadel, Elizabeth Bock, Sylvain Baillet

This is the first tutorial of the Get started tutorial series. The goal of these introduction tutorials is to guide you through most of the features of the software. The results of one tutorial in the series are often used in the following section, so read these pages in the correct order. Moreover, please follow first these tutorials with the data we provide. This way you will be able to focus on learning how to use the software. It is better to start with some data that is easy to analyze. After going through all the tutorials, you should be comfortable enough with the software to start analyzing your own recordings.

Tutorial conventions

This section describes conventions used in all the Brainstorm tutorials.

How to read these tutorials

The goal of these introduction tutorials is to guide you through most of the features of the software. All the pages use the same example dataset. The results of one section are most of the time used in the following section, so read these pages in the correct order.

Please follow first these tutorials with the data we provide. This way you will be able to focus on learning how to use the software. It is better to start with some data that is easy to analyze. After going through all the tutorials, you should be comfortable enough with the software to start analyzing your own recordings.

You may observe minor differences between the screen captures presented in these pages and what you obtain on your computer: different colormaps, different values, etc. The software being constantly improved, some results changed since we produced the illustrations. When the changes are minor and the interpretation of the figures remain the same, we don't necessarily update the images in the tutorial.

If you are interested only in EEG or intra-cranial recordings, do not think that these MEG-based introduction tutorials is not adapted for you. Most of the practical aspects of the data manipulation are very similar in EEG and MEG. First start by reading and following these introduction tutorials using the MEG example dataset provided, then when you are familiar with the software, go through the tutorial EEG and Epilepsy to get more details about the processing steps that are specific for EEG, or read one of the SEEG/ECOG tutorials available in the section "Other analysis scenarios".

Presentation of the experiment

All the introduction tutorials are based on a simple auditory oddball experiment:

• One subject, two acquisition runs of 6 minutes each.

• Subject stimulated binaurally with intra-aural earphones.

• Each run contains 200 regular beeps and 40 easy deviant beeps.

• Recordings with a CTF MEG system with 275 axial gradiometers.

• Anatomy of the subject: 1.5T MRI, processed with FreeSurfer 5.3.

• More details will be given about this dataset along the process.

• Full dataset description available on this page: Introduction dataset.

Brainstorm folders

Brainstorm needs different directories to work properly. If you put everything in the same folder, you would run into many problems. Try to understand this organization before creating a new database.

1. Program directory:  brainstorm3

• Contains all the program files: Matlab scripts, compiled binaries, templates, etc.
• There is no user data in this folder.
• You can delete it and replace it with a newer version at anytime, your data will be safe.
• Recommended location:

  • Windows:  My documents\brainstorm3\

  • Linux:  /home/username/brainstorm3

  • MacOS:  Documents/brainstorm3

2. Database directory:  brainstorm_db

• Created by user.
• Contains all the Brainstorm database files.
• Managed by the application: do not move, delete or add files by yourself.
• Recommended location:

  • Windows:  My documents\brainstorm_db

  • Linux:  /home/username/brainstorm_db

  • MacOS:  Documents/brainstorm_db

3. User directory:  .brainstorm

• Created at first Brainstorm startup. Typical location:


  • Windows:  C:\Documents and Settings\username\.brainstorm

  • Linux:  /home/username/.brainstorm

  • MacOS:  /Users/username/.brainstorm

• Contains:

  • brainstorm.mat : Brainstorm user preferences.

  • process/: Personal plugins folder.

  • reports/: Process reports.

  • openmeeg/: OpenMEEG binaries (automatically downloaded when needed).

  • templates/: Additional anatomy templates, saved as .zip files.

  • mex/: Some .mex files that have to be recompiled.

  • tmp/ : Temporary folder, cleaned every time Brainstorm is started.


4. Original data files:

• Recordings you acquired and you want to process with Brainstorm.

Starting Brainstorm for the first time

1. If you haven't read the installation instructions, do it now: Installation.

2. Start Brainstorm from Matlab or with the compiled executable.


   BST> Starting Brainstorm:
   BST> =================================
   BST> Version: 28-Jan-2015
   BST> Checking internet connectivity... ok
   BST> Compiling main interface files...
   BST> Emptying temporary directory...
   BST> Deleting old process reports...
   BST> Loading configuration file...
   BST> Initializing user interface...
   BST> Starting OpenGL engine... hardware
   BST> Reading plugins folder...
   BST> Loading current protocol...
   BST> =================================

3. Read and accept the license file.

4. Select your Brainstorm database directory (brainstorm_db).

Main interface window

The main Brainstorm window described below is designed to remain on one side of the screen. All the space of the desktop that is not covered by this window will be used for opening other figures.

The text is too small

If you have a high-resolution screen, the text and icons in the Brainstorm may not scale properly, leading the interface to be impossible to use. This can be adjusted with the Interface scaling (%) slider in File»Edit preferences or in the main Brainstorm window.

Database structure

Brainstorm allows you to organize your recordings and analysis with three levels of definition:

• Protocol

  • Group of datasets that have to be processed or displayed together.

  • A protocol can include one or several subjects.

  • Some people would prefer to call this experiment or study.

  • Only one protocol can be opened at a time.

  • Your Brainstorm database is a collection of protocols.

• Subject

  • A person who participated in a given protocol.

  • A subject contains two categories of information: anatomy and functional data.
    Anatomy: Includes at least an MRI volume and some surfaces extracted from the MRI.
    Functional data: Everything that is related with the MEG/EEG acquisition.


  • For each subject, it is possible to use either the actual MRI of the person or one of the anatomy templates available in Brainstorm.

• Sub-folders

  • For each subject, the functional files can be organized in different sub-folders.

  • These folders can represent different recording sessions (aka acquisition runs) or different experimental conditions.

  • The current structure of the database allows only one level of sub-folders for each subject. Thus, it is not possible to organize the files by session AND by condition.



Database files

• The database directory  brainstorm_db is managed completely from the graphic user interface (GUI).

• All the files in the database must to be imported through the GUI. Do not try to copy files by yourself in the brainstorm_db folder, it won't work.

• Everything in this folder is stored in Matlab .mat format, with the following architecture:

  • Anatomy data:
    brainstorm_db/protocol_name/anat/subject_name

  • Functional data:
    brainstorm_db/protocol_name/data/subject_name/subfolder/

• Most of the files you see in the database explorer in Brainstorm correspond to files on the hard drive, but there is no one-to-one correspondence. There is extra information stored in each directory, to save properties, comments, default data, links between different items, etc. This is one of the reasons for which you should not try to manipulate directly the files in the Brainstorm database directory.

• The structure of the database is saved in the user preferences, so when you start the program or change protocol, there is no need to read again all the files on the hard drive.

• If Brainstorm or Matlab crashes before the database structure is correctly saved, the files that are displayed in the Brainstorm database explorer may differ from what is actually on the disk. When this happens, you can force Brainstorm to rebuild the structure from the files on the hard drive: right-click on a folder > Reload.

Create your first protocol

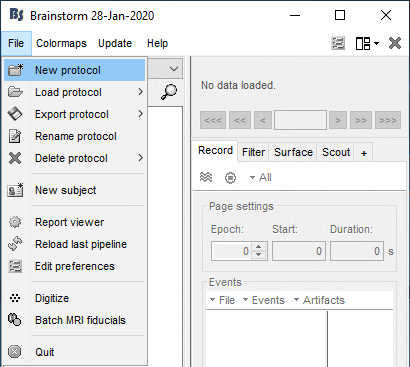

1. Click on File»New protocol. The Create new protocol will appear, here you need to introduce the properties of the new protocol.



2. Protocol definition: Provide the Protocol name, enter: TutorialIntroduction.
   It will automatically update the anatomy and datasets paths. Do not edit manually these paths, unless you work with a non-standard database organization and know exactly what you are doing.

3. Default properties for the subjects: These are the default settings that are used when creating new subjects. It is then possible to override these settings for each subject individually.

   • Default anatomy: (MRI and surfaces)

     • No, use individual anatomy:
       Select when you have individual MRI scans for all the participants of your study.

     • Yes, use default anatomy:
       Select when you do not have individual scans for the participants, and you would like to use one of the anatomy templates available in Brainstorm.

   • Default channel file: (Sensors names and positions)

     • No, use one channel file per acquisition run:
       Different head positions: Select this if you may have different head positions for one subject. This is usually not the case in EEG, where the electrodes stay in place for all the experiment. In MEG, this is a common setting: one recording session is split in multiple acquisition runs, and the position of the subject's head in the MEG might be different between two runs.
       Different number of channels: Another use case is when you have multiple recordings for the same subject that do not have the same number of channels. You cannot share the channel file if the list of channels is not strictly the same for all the files.
       Different cleaning procedures: If you are cleaning artifacts from each acquisition run separately using SSP or ICA projectors, you cannot share the channel file between them (the projectors are saved in the channel file).

     • Yes, use one channel file per subject:
       This is a common setting for EEG. The electrodes are in the same position for all the files recorded on one subject, and the number of channels is the same for all the files. To use this option, you should not be using SSP/ICA projectors on the recordings, or they should be computed for all the runs at once.

     • Yes, use only one global channel file:
       This is never a recommended setting. It could be used in the case of an EEG study where you use only standard EEG positions on a standard anatomy, but only if you are not doing any advanced source reconstruction. If you share the position of the electrodes between all the subjects, it will also share the source models, which are dependent on the quality of the recordings for each subject. This is complicated to understand at this level, it will make more sense later in the tutorials.

4. In the context of this study, we are going to use the following settings:


   • No, use individual anatomy: Because we have access to a T1 MRI scan of the subject.

   • No, use one channel file per condition/run: The typical MEG setup.

5. Click on [Create].



Protocol exploration

The protocol is created and you can now see it in the database explorer. It is represented by the top-most node in the tree.

• You can switch between Anatomy and Functional data (sorted by subject, or sorted by conditions), with the three buttons just above the database explorer. Read the tooltips of the buttons to see which one does what.

• In the Anatomy view, there is a Default anatomy node. It contains the ICBM152 anatomy, distributed by the Montreal Neurological Institute (MNI), which is one of the template anatomy folders that are distributed with Brainstorm.

• The Default anatomy node contains the MRI and the surfaces that are used for the subjects without an individual anatomy, or for registering multiple subjects to the same anatomy for group analysis.

• There are no subjects in the database yet, so both Functional data views are empty.

• Everything you can do with an object in the database explorer (anatomy files, subjects, protocol) is accessible in its right-click menu.



•

Set up a backup

Just like any computer work, your Brainstorm database is always at risk. Software bugs, computer or network crashes and manipulation errors can cause the loss of months of data curation and computation. If the database structure gets corrupted or if you delete or modify accidentally some files, you might not be able to get your data back. There is no undo button!

You created your database, now take some time to find a way to make it safe. If you are not familiar with backuping systems, watch some online tutorials explaining how to set up an automatic daily or weekly backup of your sensitive data. It might seem annoying and useless now, but could save you weeks in the future.

Changing the temporary folder

If the amount of storage space you have for your user folder is limited (less than 10Gb), you may have to change the temporary folder used by Brainstorm. If you work on a centralized network where all the computers are sharing the same resources, the system admins may impose limited disk quotas to all users and encourage them to use local hard drives instead of the limited and shared user folder.

The default temporary folder of Brainstorm is located in your user folder ($HOME/.brainstorm/tmp/), so when you import recordings or calculate large models, it may quickly fill up your limited quota and at some point block your user account. To prevent this, select the menu File»Edit preferences and set the temporary directory to a folder that is local to your computer, in which you do not have any storage limitation.

Summary

• Different folders for:

  • the program (brainstorm3).

  • the database (brainstorm_db).

  • the user directory (.brainstorm).

  • your original recordings.

• Never modify the contents of the database folder by yourself.
• Do not put the original recordings in any of the Brainstorm folders, import them with the interface.
• Do not try to maximize the main Brainstorm window: keep it small on one side of your screen.

Roadmap

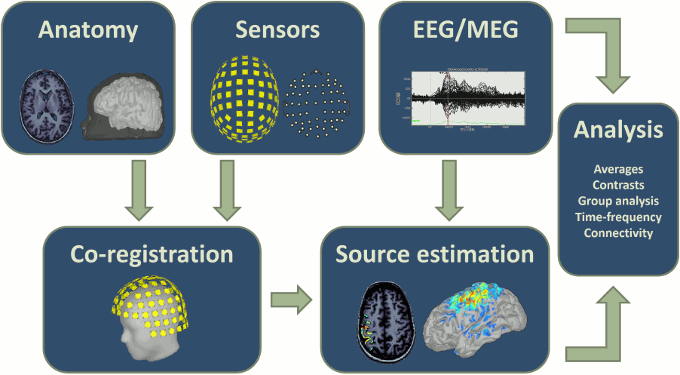

The workflow described in these introduction tutorials include the following steps:

• Importing the anatomy of the subjects, the definition of the sensors and the recordings.
• Pre-processing, cleaning, epoching and averaging the EEG/MEG recordings.
• Estimating sources from the imported recordings.

• Computing measures from the brain signals of interest in sensor space or source space.



Additional documentation

• Forum: Moving the database to a different folder or drive
