sEEG electrods coordinates

ArthurP · March 6, 2025, 5:55pm

Hello,

I'm trying to import coordinate files for different subjects in sEEG, but the problem is that the coordinates are not fully detected (link in the message). Specifically, I should have 131 electrodes, but only 39 are detected…

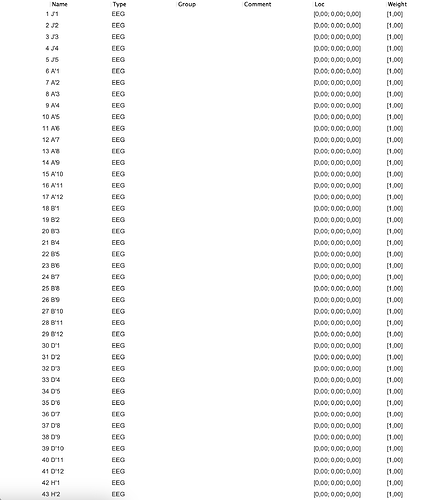

Here is the sEEG channel file that I have on Brainstorm:

Could you help me understand why?

Thanks in advance,
Arthur

LYONNEURO_2013_VACj_ACPC.pts (5.2 KB)
LYONNEURO_2013_VACj_MNI.pts (5.1 KB)
LYONNEURO_2013_VACj_T1Post_2013-10-9.pts (5.2 KB)
LYONNEURO_2013_VACj.csv (37.0 KB)
LYONNEURO_2013_VACj.pts (5.0 KB)

tmedani · March 11, 2025, 4:38am

@chinmay.chinara can you please check this

chinmay.chinara · March 11, 2025, 8:06pm

@ArthurP thank you for reaching out to us.

Can you tell me more about the software/instrument used to create these files ?
Also I just opened the files you sent in a text editor and the channel names in the screenshot do not match with the channel names in the files you sent. Can you verify them ?

ArthurP · March 12, 2025, 10:33am

Hi,

First of all, the coordinates are incorrect. You're right, so here is the correct data:

LYONNEURO_2014_SIEj_ACPC.pts (3.3 KB)
LYONNEURO_2014_SIEj_MNI.pts (3.5 KB)
LYONNEURO_2014_SIEj_T1Post_2014-10-3.pts (3.5 KB)
LYONNEURO_2014_SIEj.csv (24.2 KB)
LYONNEURO_2014_SIEj.pts (3.4 KB)

Regarding the rest of your message, I can't provide you with the exact name of the material used to create the data because I just received it as is.

I would like to know how Brainstorm detects the coordinates and the names of the electrodes, and if there are any issues with the detection in these files.

For the importation, I use IntraAnat, MNI space, with the MNI files in .pts.

Thank you in advance,
Arthur

chinmay.chinara · March 12, 2025, 7:45pm

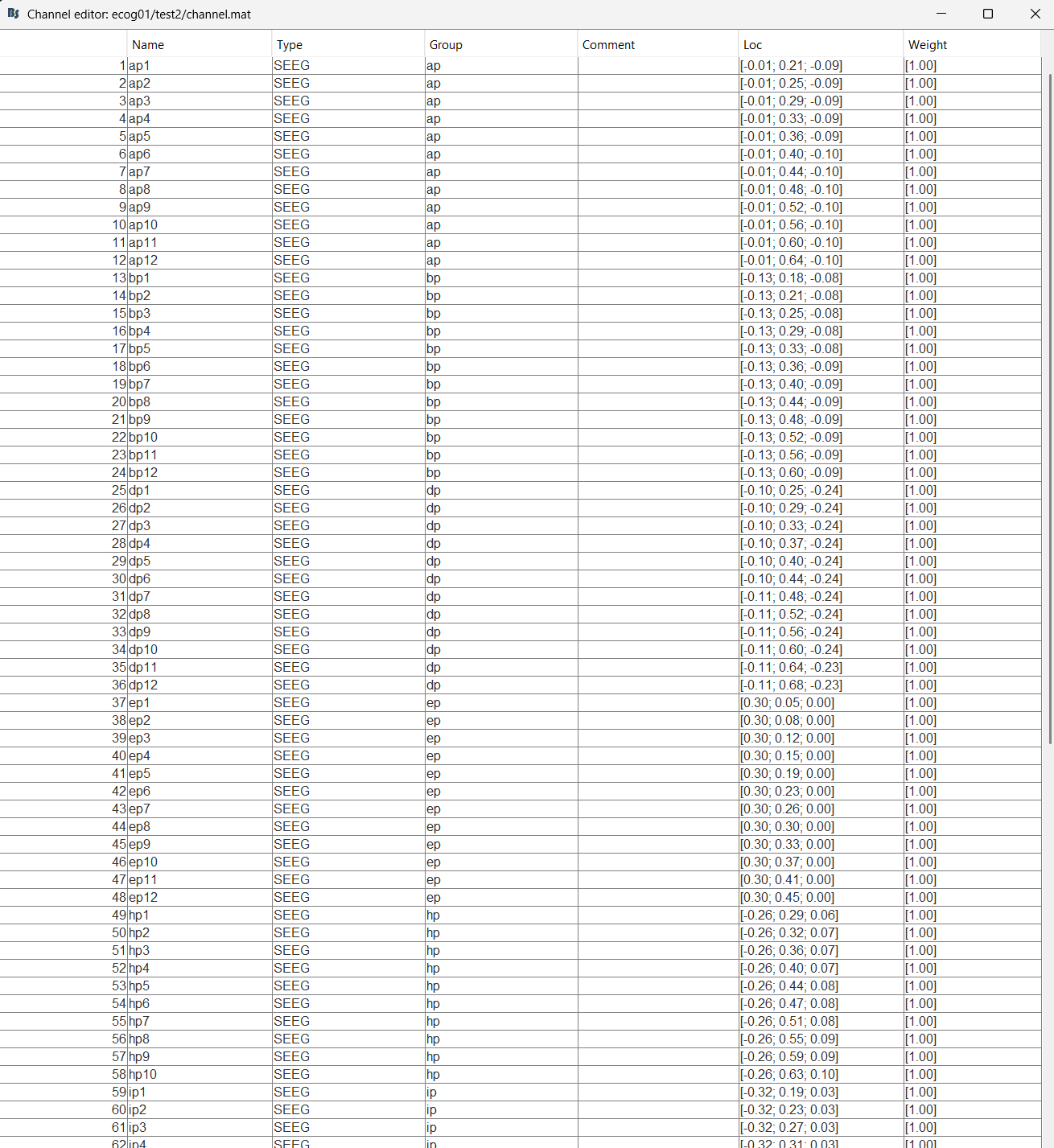

I did the same for the files you provided above and it seems to be importing correctly.

Note: This still does not match the initial screenshot you shared.

When you Import Channel File with file type EEG: IntrAnat, MNI space (pts;csv), import_channel.m gets called. As you can see, in_channel_ascii.m then handles the parsing of this .pts file. It expects a .pts file with four columns ('Name','X','Y','Z' ), 3 header lines and [mm] as units.
